2022 Toyota Tundra, Briefly

There hasn’t been an all-new Tundra since 2007. So given that they’ve been working on it for a while. . .

By Gary S. Vasilash

The specs speak for themselves. Especially for the 2022 Toyota Tundra with the i-FORCE MAX powertrain, which takes the standard 3.5-liter twin-turbo V6 (389 hp; 479 lb-ft of torque) and hybridizes it so that it produces 437 hp and 583 lb-ft of torque.

Yes, another full-size pickup truck with a hybrid.

But what is different about this approach being taken by Toyota is, explains Mike Sweers, senior vice president, Product Development Office and F1 Platform (i.e., what the new Tundra is based on) engineer, is that rather than trying to boost the fuel efficiency of the truck, the objective is to provide what he says most serious truck users are looking for, which is more power. (There is a 10-speed automatic for both engines.)

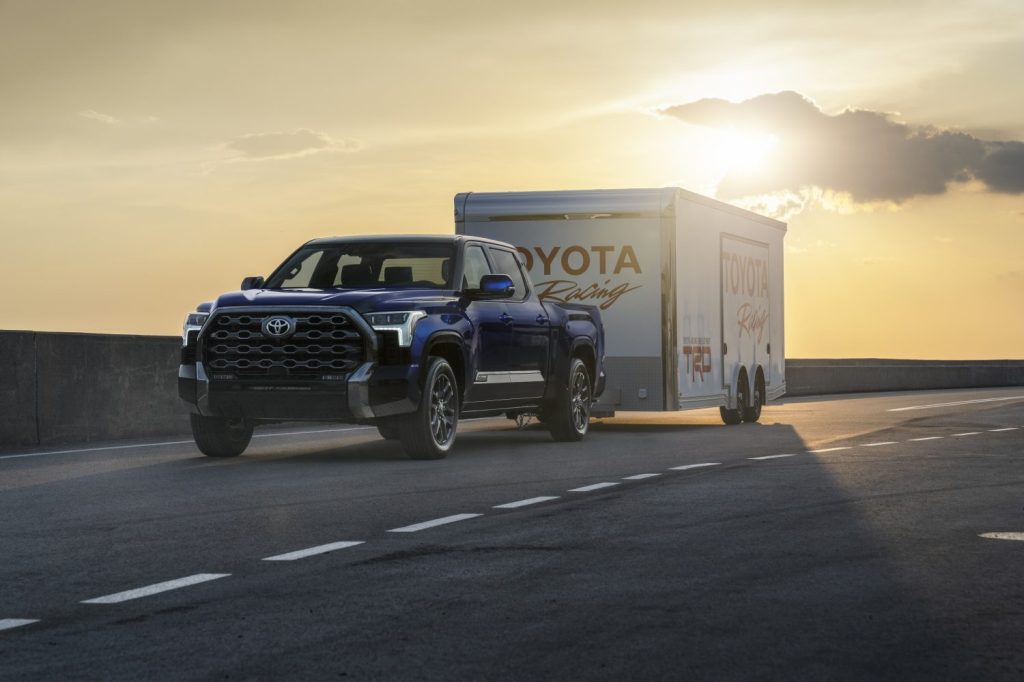

While the Tundra can certainly tow–as in up to 12,000 pounds–the vehicle is meant more for those who do recreational towing than commercial–which is more about the nature of the Toyota brand than anything having to do with the capability of the truck, because it is engineered to be fully capable–and then some. (Image: Toyota)

Framed

The thing about the ’22 Tundra is that there is a focus on overall robustness. They went from C-channel frame cross members to boxed, for example. While that improved stiffness, there was consideration taken for those who ride on a regular basis—loaded or unloaded—so there is a multilink rear suspension with the shocks mounted outside the frame rails to help improve the handling and ride comfort. (Even more comfort is provided by the available air suspension system that provides both manual and automatic leveling.)

The new Tundra can tow up to 12,000 pounds—which is an increase of 17.6% compared with the previous generation—and the load in the bed, which is based on sheet molding compound, which has been used on the Toyota Tacoma with excellent results, is 1,940 pounds, or an 11% increase.

Tugged

While on the subject of towing, it is worth knowing that there are two Tow/Haul modes. Activate the standard mode and the throttle response in increased. Activate the Tow/Haul+ mode and that response is amped up even more—and speaking of amps, the trucks with the hybrid powertrains have the electric motor constantly in operation during Tow/Haul+ and the engine Stop-Start function is deactivated.

And there is another towing-related aspect to the ’22 Tundra: Its design.

According to Adam Rabinowitz, chief designer at Calty who led the exterior design team for the truck, “We wanted to make it look like a premium towing machine.”

Toughened

Rabinowitz explained that the truck design is meant to deliver on it being more recreational than commercial—as in people with boats and trailers rather than people with tool trailers or earth movers.

And while they worked to show that it is tough enough to take it (e.g., there is a beam shape on the body side that is meant to convey the image of the truck’s frame), they also worked to assure that it looked sufficiently high-tech, such as through the use of the slim, high-mounted headlights.

Locked In

Benjamin Jimenez, studio chief designer at Calty, who led the interior design, echoed that “this is more of a recreational truck, so our approach was different than that of our competitors,” said that unlike the competitors, who generally use a vertical layout to the elements of the interior, they opted to go horizontal with all elements of the interior interlocking (e.g., doors with IP and trim) to provide a strong look: “We didn’t want this to feel weak in any way,” Jimenez sad.

Another way of indicating that the ’22 Tundra is more for adventure than work: upon startup, there is an image of one of five national parks indicated on the gauge cluster.
